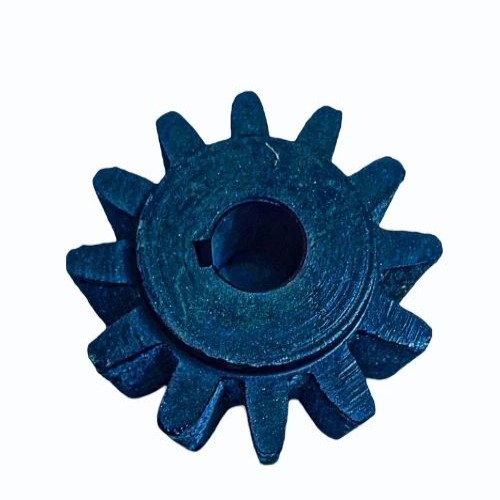

BEVEL PINIION 12 TEETH

Get a Price/Quote

MOQ : 1 Unit

BEVEL PINIION 12 TEETH Specification

Surface
Heat Treated & Ground

Product Type
Bevel Pinion Gear

General Use
Mechanical Power Transmission

Material
Alloy Steel

Type
12 Teeth Bevel Pinion

Capacity
Custom / As Per Specification

Weight (kg)
Approx. 0.75 kg

Computerized
No

Automatic
No

Control System
Manual / Mechanical

Method
Precision Machined

Dimension (L*W*H)
Approx. 75 mm (Length) x 45 mm (OD) x 40 mm (Height)

Feature
High Strength, Wear Resistant, Accurate Tooth Profile

Color
Metallic Grey

Hardness
58-62 HRC (Surface Hardened)

Mounting Type
Shaft Mounted

Noise Level
Low (Machined, Properly Meshed)

Number of Teeth
12

Pitch Angle
Standard Bevel Angle (Customizable)

Bore Diameter
25 mm (Customizable)

Lubrication
Grease/Oil as Required

Manufacturing Process
Forged & Precision Machined

Module
2.5 mm (as per drawing/spec)

Finish Type
Polished/Anti-Rust Coated

Application
Gearboxes, Industrial Machinery, Lifts, Conveyors

About BEVEL PINIION 12 TEETH

The 12-teeth bevel pinion is a crucial, high-wear spare part for industrial concrete mixer machines, engineered to transfer rotary motion at a 90-degree angle. It is typically manufactured from cast iron or durable steel for rugged, heavy-duty applications, ensuring precise meshing with the main bevel ring gear.

Key Description & Features

Material: Generally cast iron, steel, or hardened metal for high wear resistance.
Application: Specifically used in the drive system of concrete mixer machines (e.g., Winget 100T/150T models, standard 10/7 mixers).
Teeth Count: 12 teeth (Bevel profile).

Robust, Customizable Design

This 12-teeth bevel pinion is engineered to withstand demanding applications, featuring heat-treated and ground surfaces, as well as surface hardening for improved wear resistance. The component's dimensions and bore diameter can be tailored to your project specifications. Thanks to its polished finish and anti-rust coating, it remains corrosion-resistant, even in challenging environments.

Precision Engineering for Optimal Performance

Forged and precision-machined, the bevel pinion ensures high strength, accurate tooth profiles, and long-term durability. Every pinion undergoes stringent quality checks to guarantee consistent performance in gearboxes and transmission assemblies, maintaining low operational noise when properly meshed and lubricated.

FAQ's of BEVEL PINIION 12 TEETH:

Q: How is the 12 teeth bevel pinion typically installed in industrial systems?

A: The 12 teeth bevel pinion is designed for shaft-mounted applications. It can be securely fixed onto a shaft using suitable keys or set screws, ensuring correct alignment with the mating gear in mechanical transmission systems such as gearboxes, conveyors, lifts, and other machinery.

Q: What customization options are available for this bevel pinion?

A: Aside from the standard 12 teeth and 2.5 mm module, the pitch angle and bore diameter can be customized based on specific application needs or provided drawings. Custom dimensions and finishes are also available to accommodate unique industrial requirements.

Q: When should lubrication be applied to this bevel pinion?

A: Lubrication should be applied prior to use and maintained routinely as per operating conditions. Both grease and oil are suitable, depending on your machinery's requirements, to ensure low noise, reduced wear, and optimal performance during operation.

Q: Where can this bevel pinion be used?

A: This bevel pinion is used in gearboxes, industrial machinery, lifts, and conveyor systems, functioning as a critical part of mechanical power transmission where angular transfer of torque is required.

Q: What is the manufacturing process for this bevel pinion?

A: The bevel pinion is manufactured through a process of forging followed by precision machining to achieve high accuracy. The teeth are surface hardened to 58-62 HRC for enhanced durability and then finished with polishing or an anti-rust coating to ensure longevity.

Q: How does the design of this pinion benefit my application?

A: With its high-strength alloy steel material, surface hardening, accurate machining, and corrosion-resistant finish, this bevel pinion delivers reliable power transmission, reduced maintenance needs, and prolonged service life, even under intensive operating conditions.
