ROPE DRUM HEAVY DUTY

Get a Price/Quote

MOQ : 1 Unit

ROPE DRUM HEAVY DUTY Specification

Lifting Speed
4~8 m/min

Motor Power
7.5 kW

Lifting Height
Up to 30 meters

Surface
Powder Coated

Product Type
Heavy Duty Rope Drum

General Use
Industrial Lifting & Hoisting Applications

Material
High Grade Steel

Type
Mechanical Drum

Capacity
3 to 20 Ton

Weight (kg)
370 kg

Computerized
No

Automatic
Yes

Control System
Push Button / Pendant Control

Cooling System
Air Cooled

Method
Motorized

Voltage
415 V AC

Dimension (L*W*H)
980 x 560 x 650 mm

Feature
Corrosion Resistant, Long Service Life, Robust Structure

Color
Blue / Yellow

Finishing
Smooth Machined & Coated Surface

Ambient Temperature
-10C to +50C

Drum Material Grade
EN8 / IS 2062

Drum Length
760 mm

Rope Diameter
12 mm

Groove Type
Helical Groove

Design standard
IS 3177 & IS 807

Drum Diameter
325 mm

Mounting Type
Foot Mounted

Wire Rope Type
Steel Core, Anti-Rotating

About ROPE DRUM HEAVY DUTY

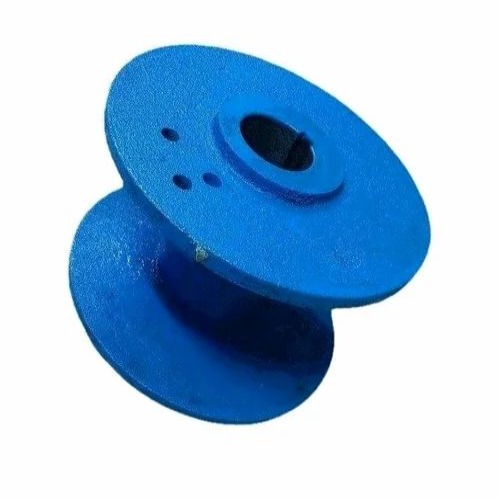

Rope Drum Description

The rope drum (or hoist drum) is responsible for winding the wire rope that lifts the hopper bucket.

Material: In heavy-duty machines, these are typically made of high-grade Cast Iron (C.I.).
Mounting: The drum is often fitted to an eccentric shaft and supported by heavy-duty deep groove ball bearings to handle the high tension of a full aggregate load.
Wire Rope: High-tensile steel wire rope (often 8 mm to 10 mm diameter, ) is used for its non-rotating and high-load-bearing properties.
Function: It converts the rotational energy from the motor or engine into vertical lift for the hopper.

Precision Engineering & Robust Performance

Crafted according to IS 3177 & IS 807 standards, this mechanical rope drum is designed for longevity and heavy-duty application. The smooth machined, powder coated surface ensures exceptional structural integrity and enhanced resistance to corrosion, making it ideal for rugged industrial environments.

Advanced Safety & Control Features

Equipped with anti-rotating steel core wire rope and helical grooves, the drum ensures efficient, safe, and reliable lifting. The push button or pendant control system allows precise operation, while automated functionality minimizes the need for manual intervention, maximizing operator safety.

Adaptable for Varied Industrial Needs

This rope drum supports lifting capacities up to 20 tons and heights up to 30 meters, serving a wide spectrum of industrial hoisting requirements. Air-cooled and capable of enduring ambient temperatures from -10C to +50C, it guarantees consistent performance across diverse operating conditions.

FAQ's of ROPE DRUM HEAVY DUTY:

Q: How is the ROPE DRUM HEAVY DUTY typically installed and mounted?

A: This rope drum features a foot-mounted design, facilitating secure and stable installation on industrial floors or structural platforms. Its mounting ensures effective load distribution and reliable operation during heavy-duty lifting tasks.

Q: What types of wire ropes are compatible with this drum?

A: The drum is specifically designed for steel core, anti-rotating wire ropes with a 12 mm diameter, ensuring optimal performance and enhanced operational safety in high-load applications.

Q: When should this rope drum be used in an industrial setting?

A: It is ideally used in environments where mechanical lifting of loads between 3 and 20 tons is required, such as manufacturing plants, warehouses, shipyards, and construction sites, especially where durability and reliable operation are essential.

Q: Where is this rope drum most effectively utilized?

A: This product excels in industrial lifting and hoisting applications, particularly in areas prone to challenging environmental conditions, thanks to its robust construction, corrosion resistance, and extensive lifting height capability.

Q: What is the process for operating the rope drum's lifting mechanism?

A: Operation is fully motorized and automatic, controlled through a push button or pendant. The powerful 7.5 kW motor, air-cooled for consistent performance, enables smooth, variable lifting speeds between 4 and 8 m/min.

Q: What are the primary benefits of using this HEAVY DUTY rope drum?

A: Key benefits include a robust, corrosion-resistant structure, long service life, user-friendly automatic control, and the ability to handle substantial loads with high reliability and safety.
